GUN SPECIFICATIONS:
Sprayfine® HVLP turbine gun
- Professional grade - All metal construction, no rubber or plastic parts - entire gun can be immersed in solvent for cleaning!
- external packing nut, no need to remove nozzle to adjust needle packing!
- Fully adjustable spray pattern
- "twist and click" air cap for vertical fan, horizontal fan, or circular pattern
- Spring loaded air cap moves in and out by simply turning retaining ring - adjust to spray any size pattern!
- Material adjustment knob - enables you to control paint output, making small items as easy to spray as large items!
- Works with any HVLP turbine system!
- Provides the best atomization in the industry!
- Projector sets available in the following sizes: 0.5mm, 1.0mm; 1.3mm; 1.5mm; 1.8mm; 2.0mm, 2.2mm
- Bleeder gun with infinite adjustment of pattern size
- Comes with 1.3mm projector set installed:
recommended size for medium viscosity finishes such as:
varnish, polyurethane, sealer, lacquer, stain, cellulose, automotive, acrylic, oil, creosote, wood primer
Needle/Nozzle selection chart
Material |
Needle and Nozzle |
Wood Stains, Lacquers, Automotive, Cellulose, Synthetics, Acrylic, Oil |
1.00mm |
Polyurethane, Glitter Paints, Cellulose, Acrylics, Synthetics, Lacquers, Fluorescents, Wood Stains, Creosote, Wood Primer |
1.30mm |
Oil Base, Oxides, Primers, Marine Paint, Varnish, Enamels, Multi-Color, Industrial Synthetics |
1.50mm |
Emulsions, Oxides, Chlorinated Rubber, Zinc Rich Primers |
1.80mm |
Hammers, Latex, Oil Base Primers, Enamels, Marine, Masonry Paints, Texture Coatings, Heavy Primers, Water and Solvent Based Adhesives |
2.00mm |
Spray Pattern selection
Spray Pattern Shape:

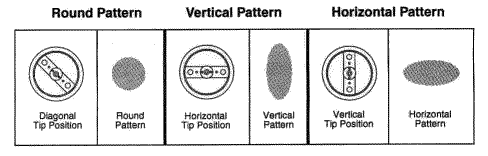

The Spray pattern is adjusted by turning the ears of the air cap into either a vertical, horizontal, or diagonal position as shown below:
Spray Pattern Size:
To change the spray pattern size, screw the air cap ring in or out accordingly. Turning the ring clockwise will make the pattern bigger (and reduce the atomization). Turning the ring counterclockwise will make the pattern smaller (and increase atomization).
Material Flow Adjustment:
To increase the material flow, turn the adjusting knob on the back of the gun counterclockwise, to decrease the material flow, turn the adjusting knob clockwise
HVLP Advantages
Saves You Time
Reduces work normally done by brush.
Clean up is fast and easy
Less draping and masking is needed
Saves You Money
Cuts material waste from overspray
Transfer efficiency of 85% or better
Save as much as 50% over conventional spray systems
Versatile
Sprays odd shapes
Pinpoint control
Sprays all surfaces requiring a fine finish
Lightweight, self-contained, portable
Maximum control with minimal overspray or bounceback
You set the spray pattern and delivery
Meets EPA Guidelines For Low VOC Emissions
Spray Virtually Any Material
Lacquers
Stains
Varnishes
Urethanes
Automotive Finishes
Solid-body stains
Oil or water-based enamels and house paints
Multi-colors
Latex
Epoxy
Primers
Enamel
Stone finish paints
Adhesives
Hammer finish
Marine finishes
Chlorinated rubber
Cellulose
Creosote
Fluorescents
Aluminum
Texture coatings
Use it To Spray:
Office Furniture
Cars/trucks
Boats
Motorcycles
Bathtubs/shower stalls
Wall tile
Countertops
Shelves
Wrought-iron
Piping
Fences
Shutters
Lockers
Equipment
Doors
Signs
Woodworking
Cabinets
Trim Work
-
